LFMT1216-F5

For competitive quote, log in to the portal and request a Special Project Quote
Size
CCTselect

PRODUCT OVERVIEW

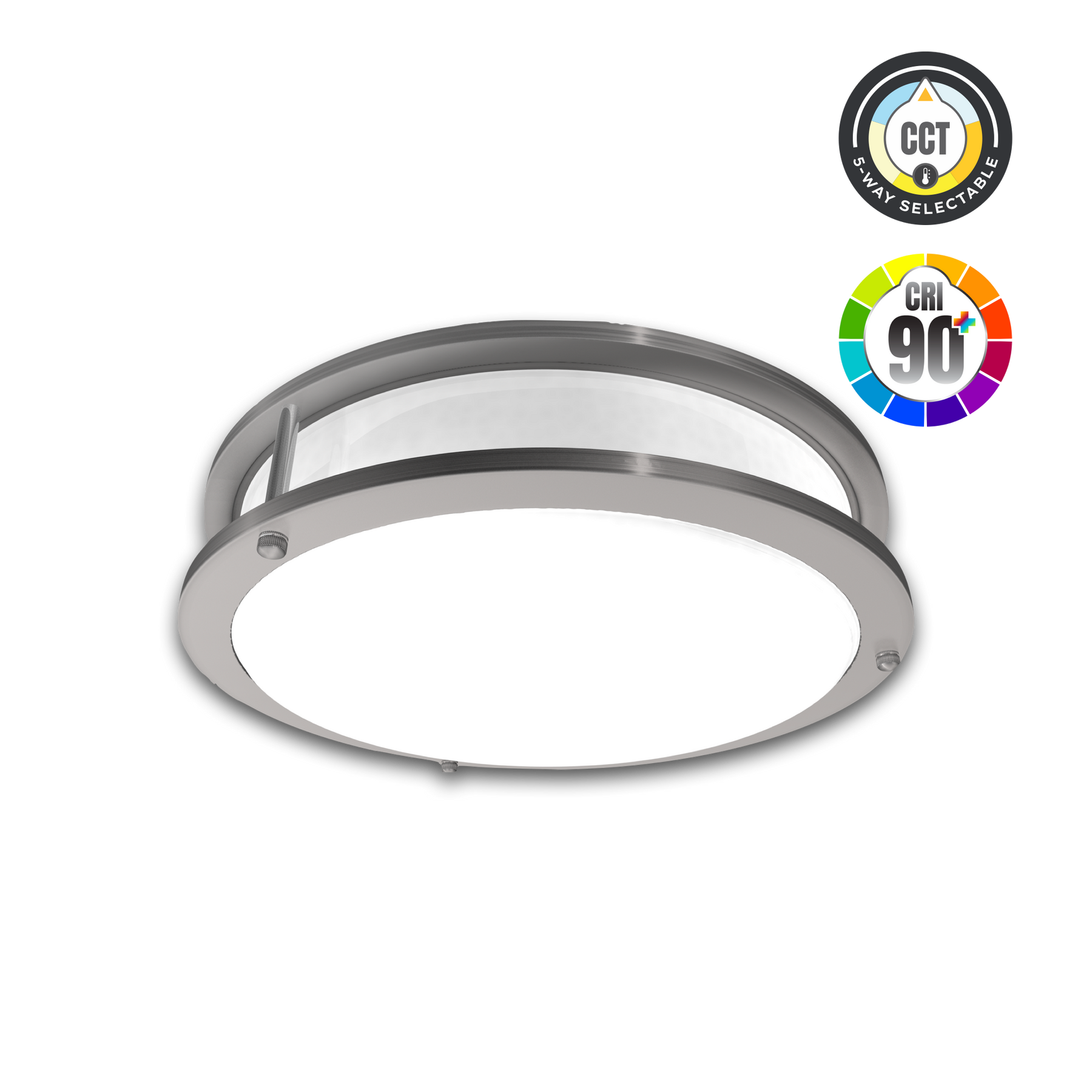

The planoⒶRCH LFMT selectⒶRCH flush mount downlight luminaire is engineered to replace traditional ceiling-mounted downlight with a variety of features for optimized performance and versatility.

Ideal for residential, offices, hallways, utility rooms, and commercial hospitalities such as hotel and reception rooms.

Key Features Key Specifications

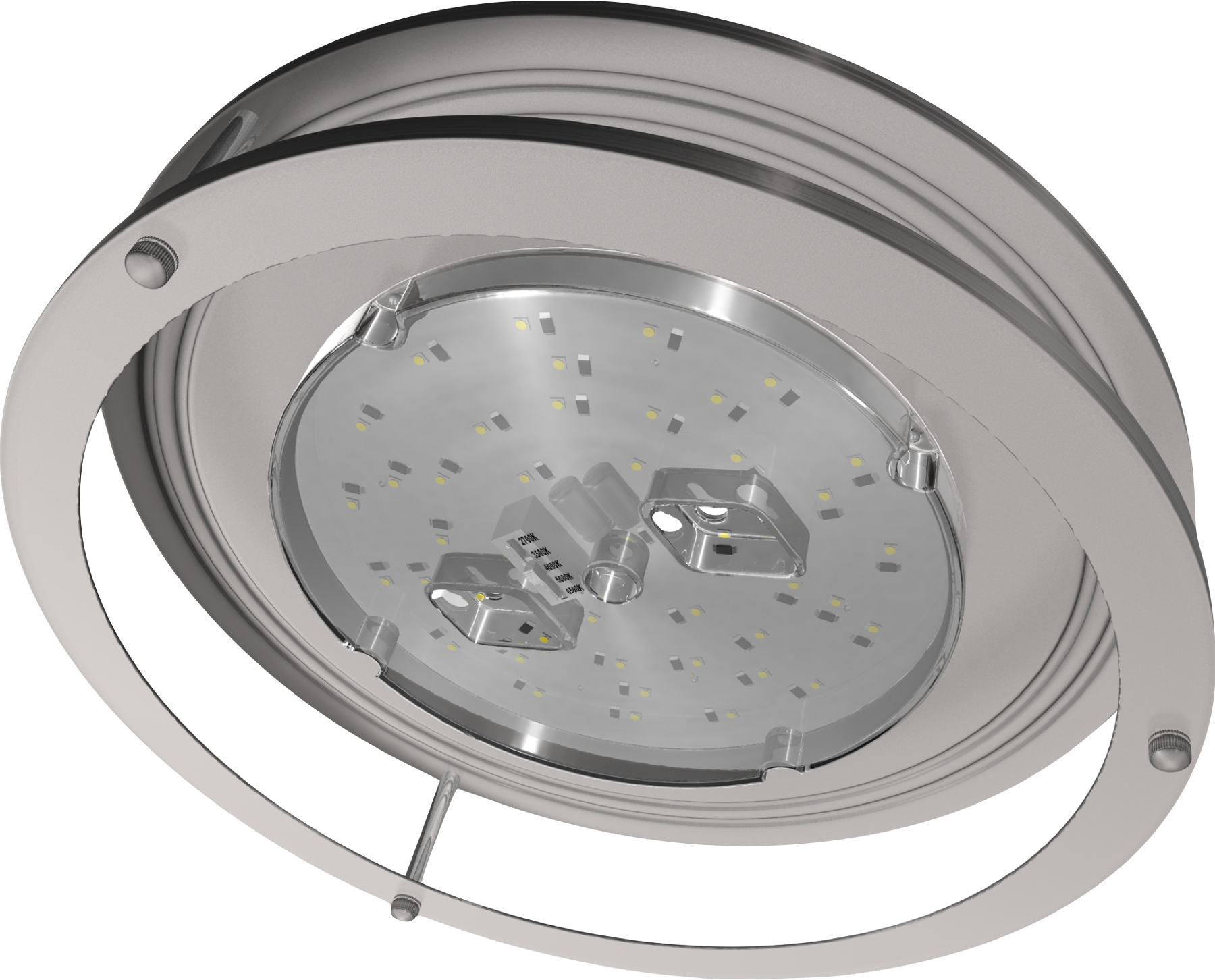

  • Open-Air Passive Heatsink
  • Low-Maintenance, High-Efficiency
  • Low-Voltage Protocol Dimming
  • Durable Polymer Diffuser Lens
  • Compact Body Design



  • Housing Dimensions: 12”, 14”, and 16”
  • Input Voltage: 120V
  • Operating Temp: -4°F — 105°F
  • IP: UL Damp Location Listed
  • PF: >0.9 Non-Flicker
  • Dimming: 1-10V
  • THD: <15%
  • CRI: >80
Applications

Certifications
Loading store locator from Stockist store locator...

Documentation Downloads

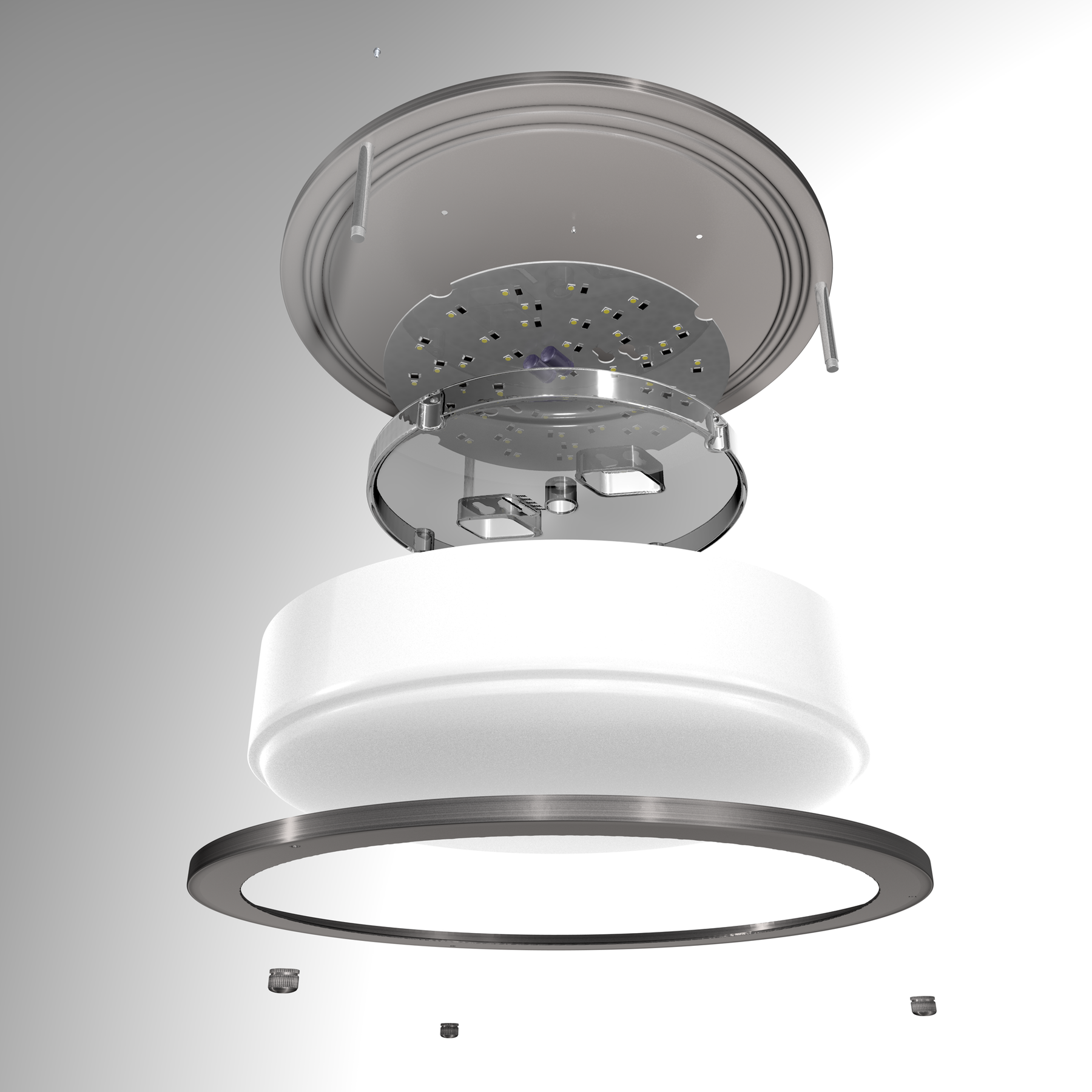

LFMF_Exploded

LFMT_1

LFMT_2

LFMT_3

LFMT_4

LFMT_5

ORDERING GUIDE

Model Series

Diameter (in)

Watt (W)

CCT (K) [xx]

EM Driver

LFMT | Flushmount

12 | 12”

16 | 16W

F5 |

Selectable:
2700K
3000K
4000K
5000K
6500K

Blank |
-EM |

None*
EM Driver

14 | 14”

22 | 22W

16 | 16”

26 | 26W

*  Standard option
Choose Your Model Specifications Above:





LFMT

12

16

F5



Example Ordering Number:  LFMT1216-F5

MODEL SPECIFICATIONS

Model Series

LFMT1216-F5

LFMT1422-F5

LFMT1626-F5

Wattage (W)

16W

22W

26W

Diameter (in)

12”

14”

16”

Lumen (LM)

1450LM

1850LM

2200LM

CCT *

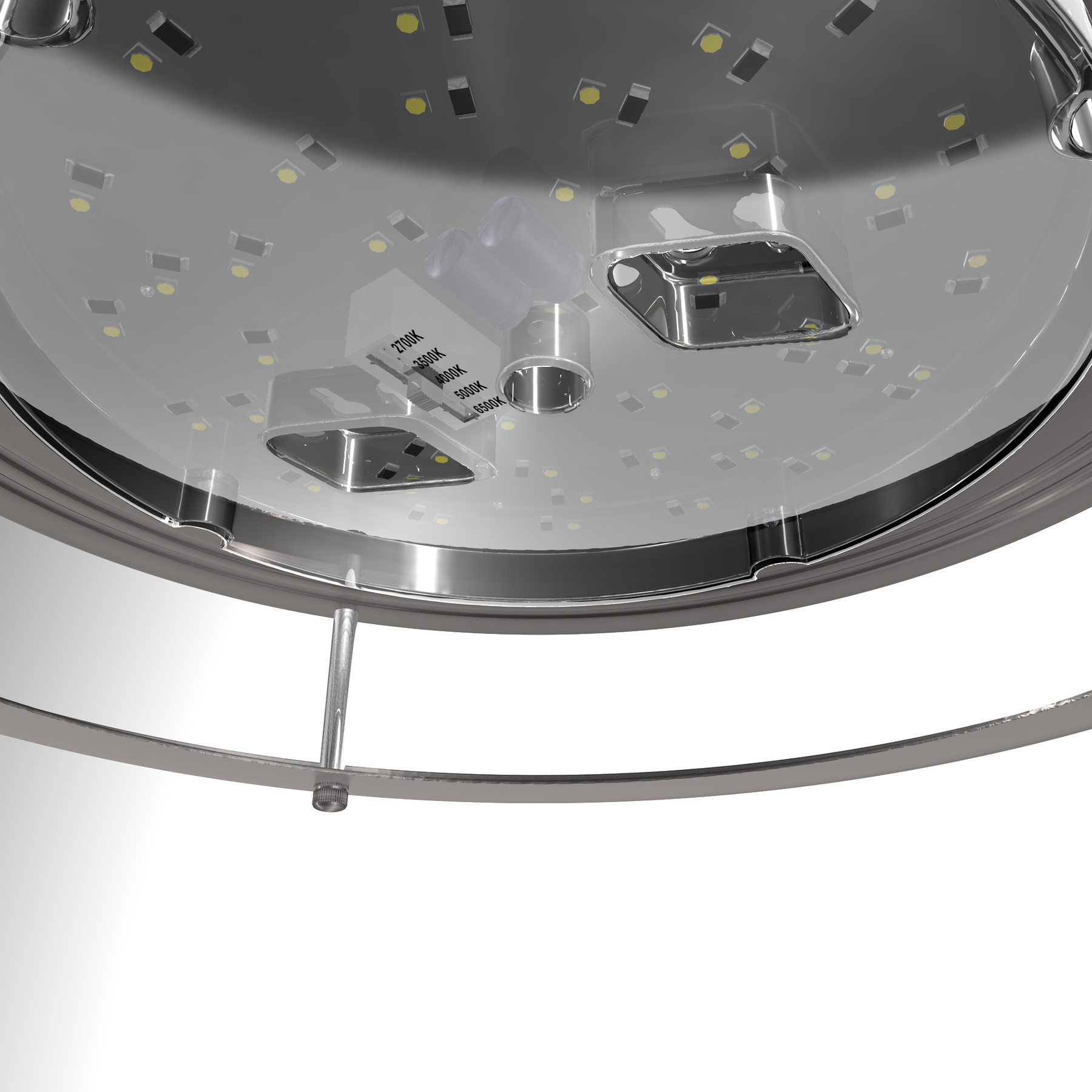

Selectable: 2700K|3500K|4000K|5000K|6500K

Finish

Nickel Finish

Beam Angle

110°

Dimmable

Yes

Efficacy

80-85LM/W

PF

0.95

Operating Temp (F)

-4°F — 105°F



SIZING & MEASUREMENTS

LFMT_6

LUMINAIRE PHOTOMETRICS

Model Series

Diameter (in)

Height (in)


LFMT12

12”

3.35”

LFMT14

14”

3.74”

LFMT16

16”

4.13”

 ⚠️ PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION

  • Please read the product specification carefully first to confirm that the working environment is in line with the condition on the specification before it is used.
  • Please confirm the input voltage and frequency before use.
  • The light must be installed by professional personnel
  • If the power cord and case of the products are damaged, it will be regarded as disqualified product and should not be used.
  • If external soft cable or wire of the product is damaged, the wire should be replaced by manufacturer or service agent or personnel with similar qualification to avoid danger.
  • This luminaire is designed to operate in ambient temperatures ranging from -4°F to 105°F and to be horizontally mounted facing down.
  • This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
  • This product is not available for several special environments, such as places with corrosive gas liquids or high pressure water vapor.
  • CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR
  • CAUTION - RISK OF FIRE



REQUIRED TOOLS

  • Screwdriver
  • Pliers
  • Wire nuts
  • Electrical tape

 ⚠️ INSTALLATION REQUIREMENTS









  1. Screw the long mounting screws into electrical box about two complete turns.(Mounting screws included).



  1. Electrical connection: Make sure electricity to the circuit is turned off. Connect green/or bare copper wire to Ground screw (Ground must be properly installed or unit may not work). Connect white wire to white supply wire cover with nut/or twist together and cover really well with electrical tape. Connect black wire supply wire cover with a wire nut/or twist together and cover really well with the electrical tape.

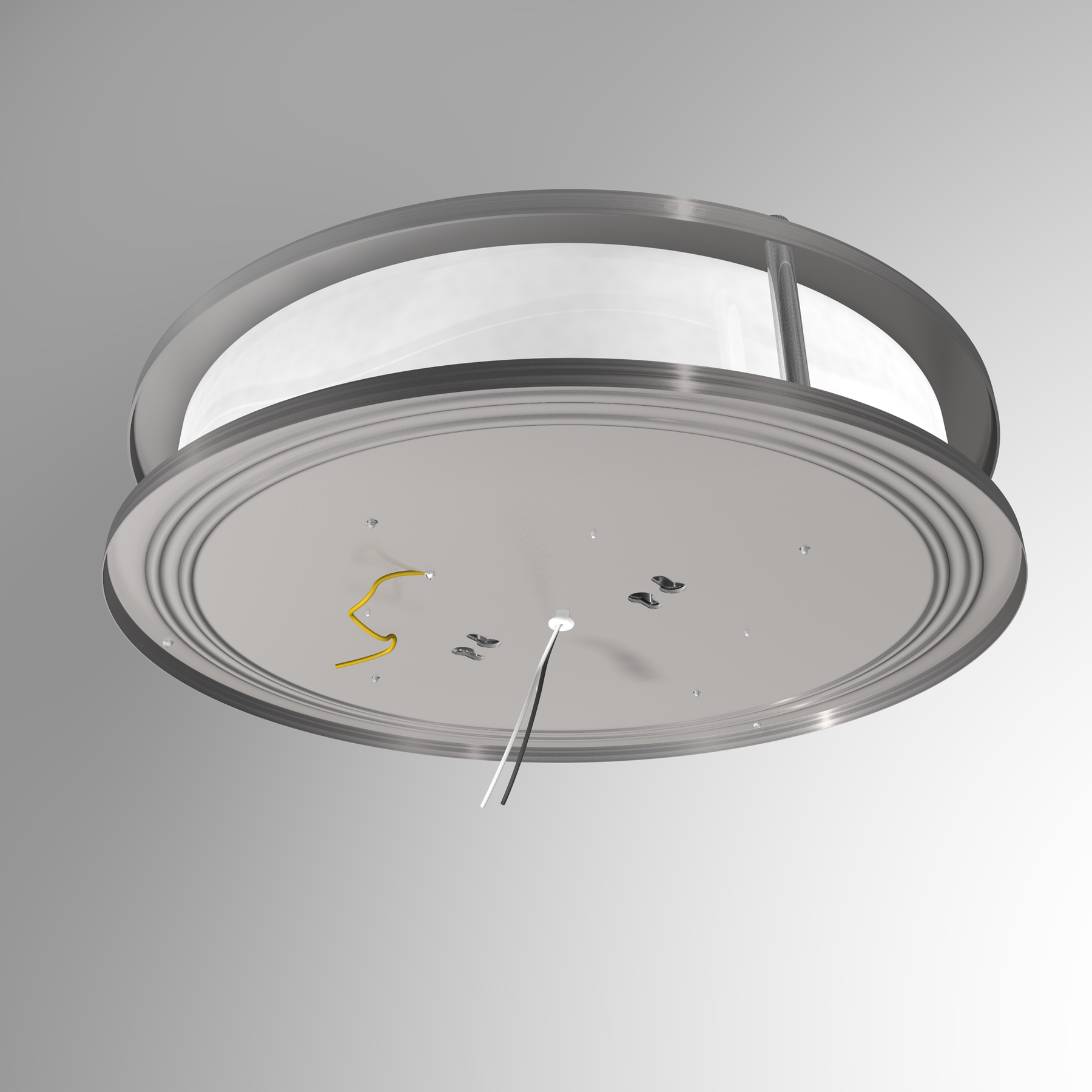

  1. Align the canopy base over the long mounting screws SO that the screw comes through the keyhole slots. Spin the canopy slightly until screws are at the small end of the keyhole slots. Tighten the self-topping screws until the canopy fits snug to the ceiling.

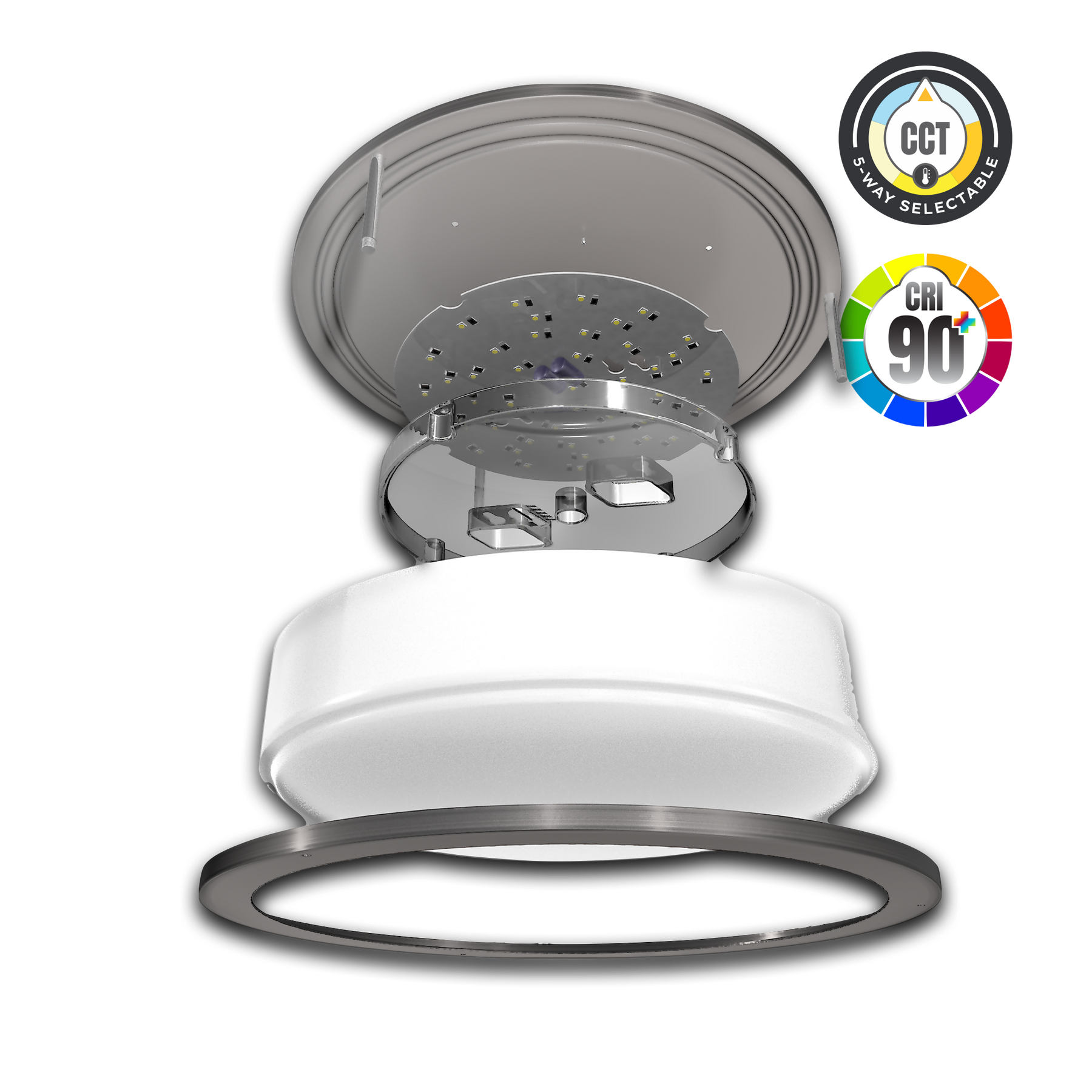

  1. Align Diffuser evenly on canopy, then place metal ring on diffuser, let 3 screws from decorative tubes come out of the decorative ring· Twist 3 decorative nuts on top to tighten the ring and diffuser.



  1. Turn power ON.
