LCNP27-40-UD

For competitive quote, log in to the portal and request a Special Project Quote

PRODUCT OVERVIEW

The luxoⒶRCH LED canopy is engineered with a rugged slim-profile with a white optical pattern for maximum site visibility. It is sealed against water and dust intrusion, armed with shatter-resistant lens, and protects against environmental contaminants for a virtually maintenance free experience.

Easy to mount directly on ceilings, pendant or J-box options, the LCNP-series is the superior solution for parking garages, awnings, canopies, and other general commercial areas for security lighting.

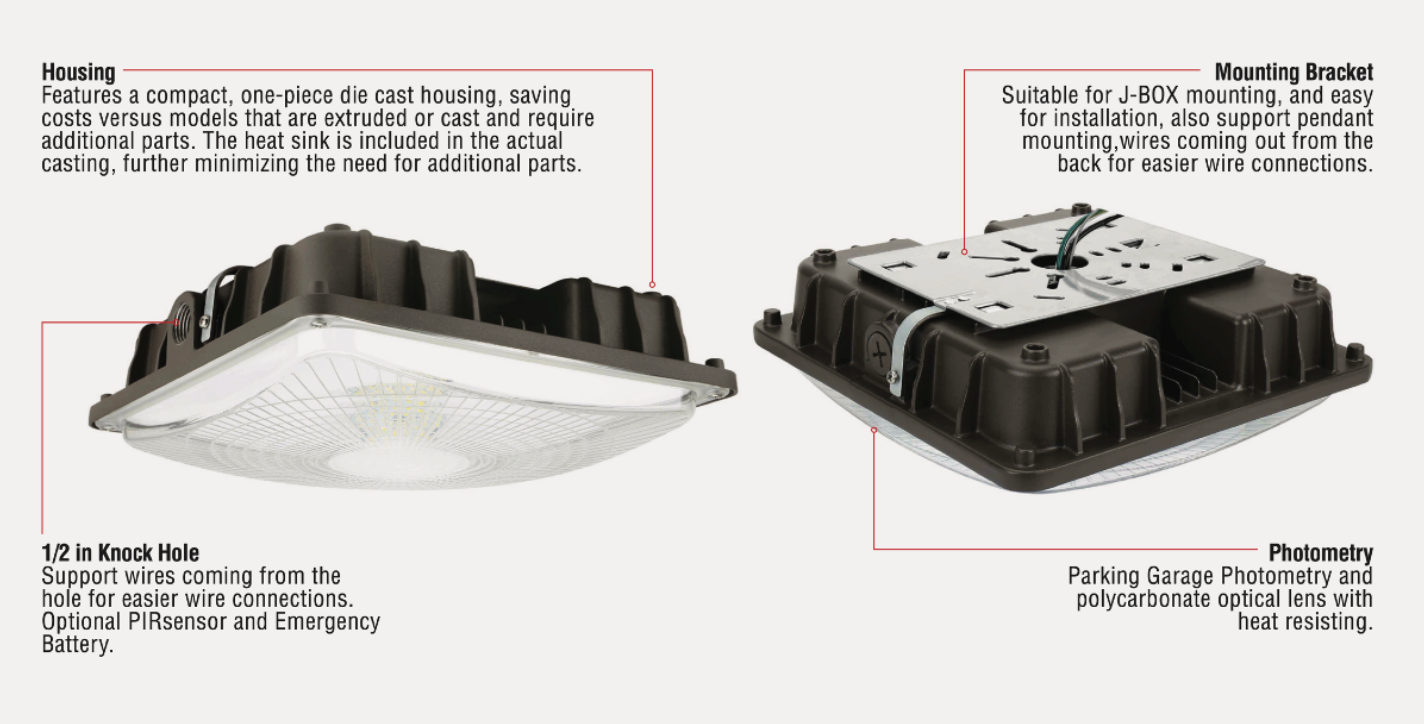

LCNP-feat

KEY FEATURES

  • Weather-sealed Die-cast Aluminum Housing
  • Mounting Plate Is Designed for Any Overhead Installation
  • Polycarbonate Optical Lens Provides Wide Beam Spread
  • Built-in Knock Out Supports Optional Vertical Mount

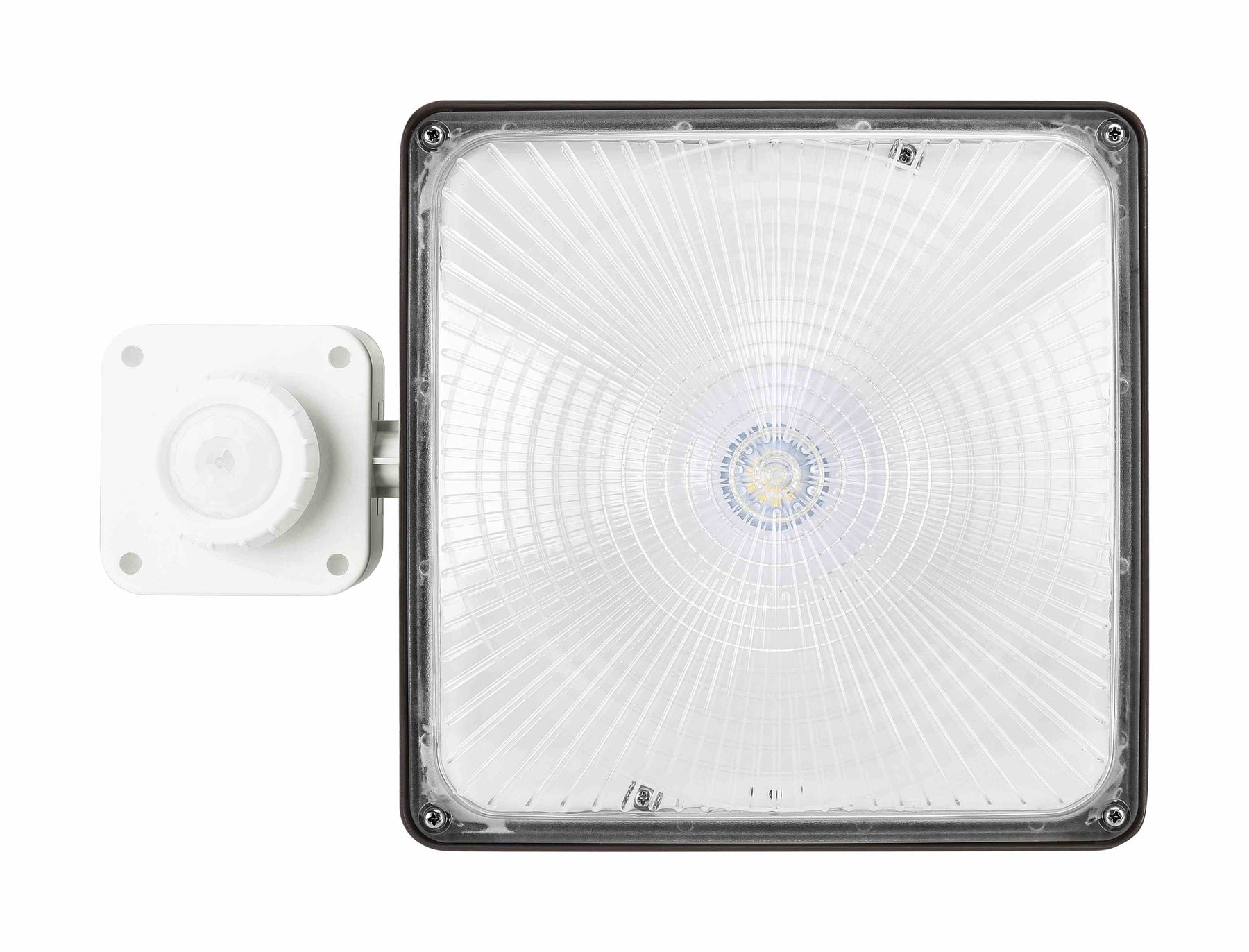

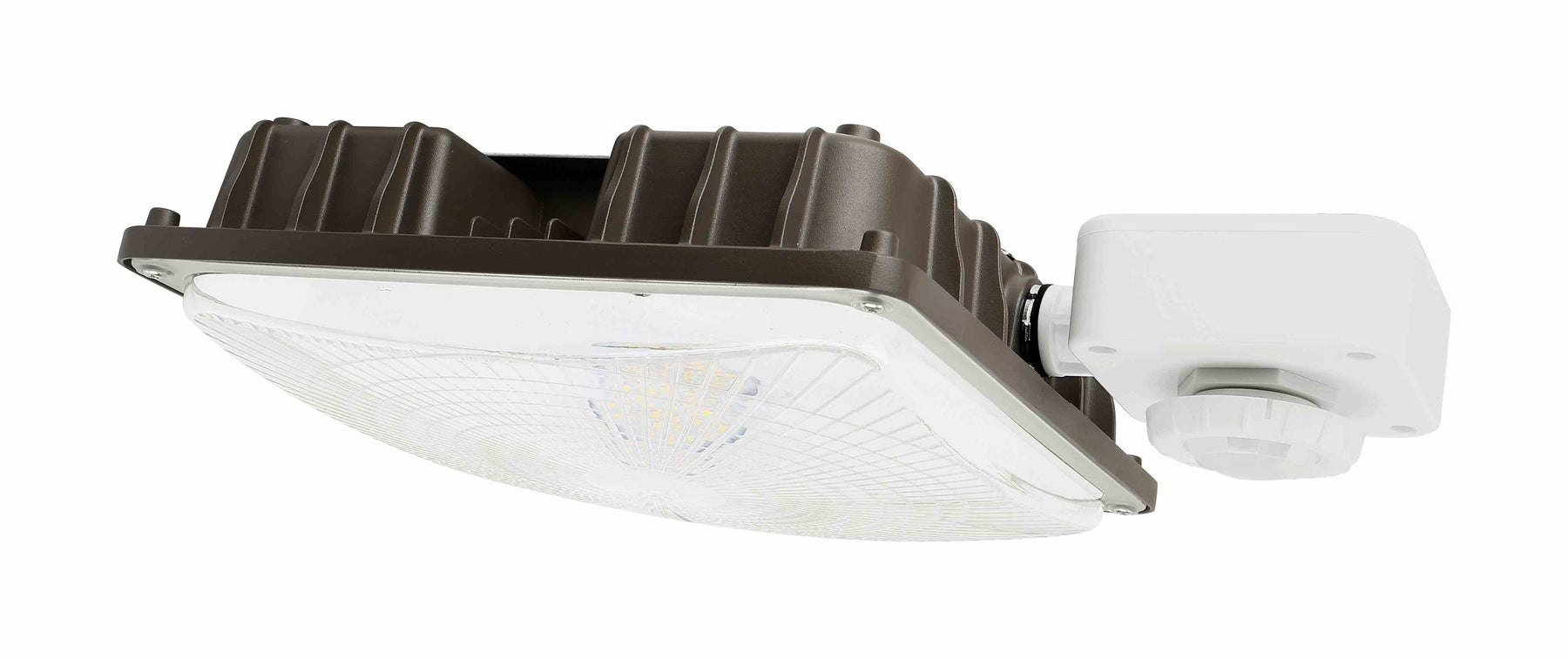

  • Optional Built-in Sensor for Optimum Efficiency

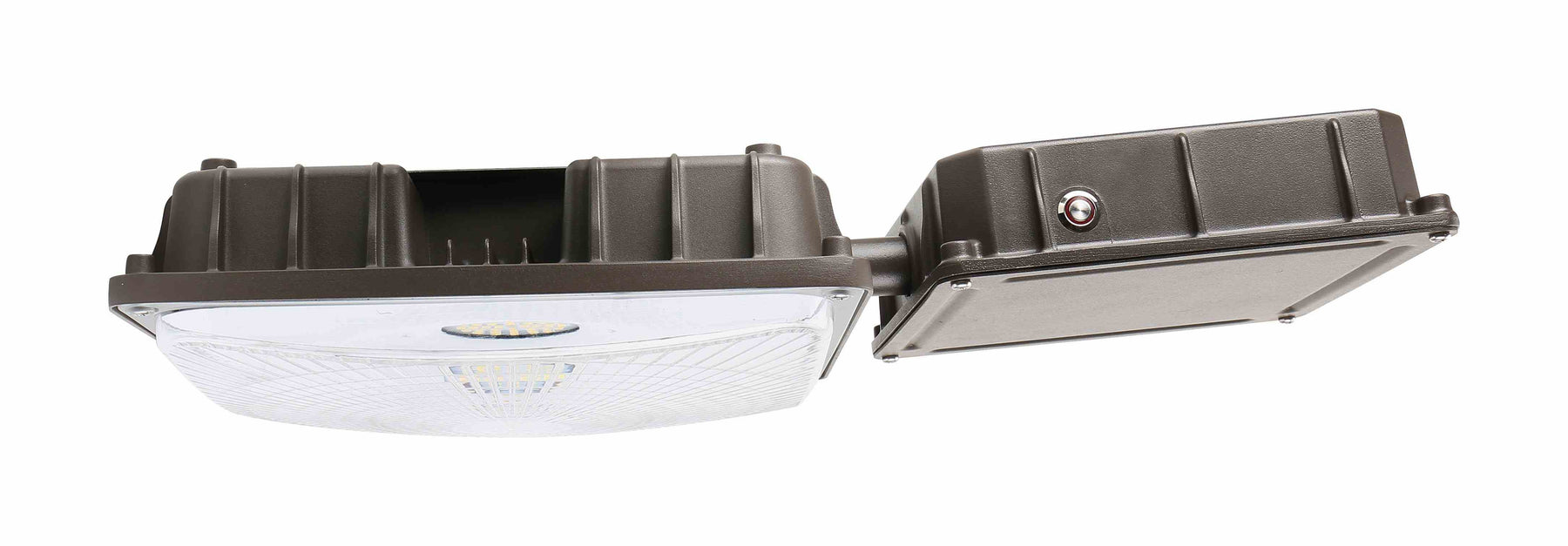

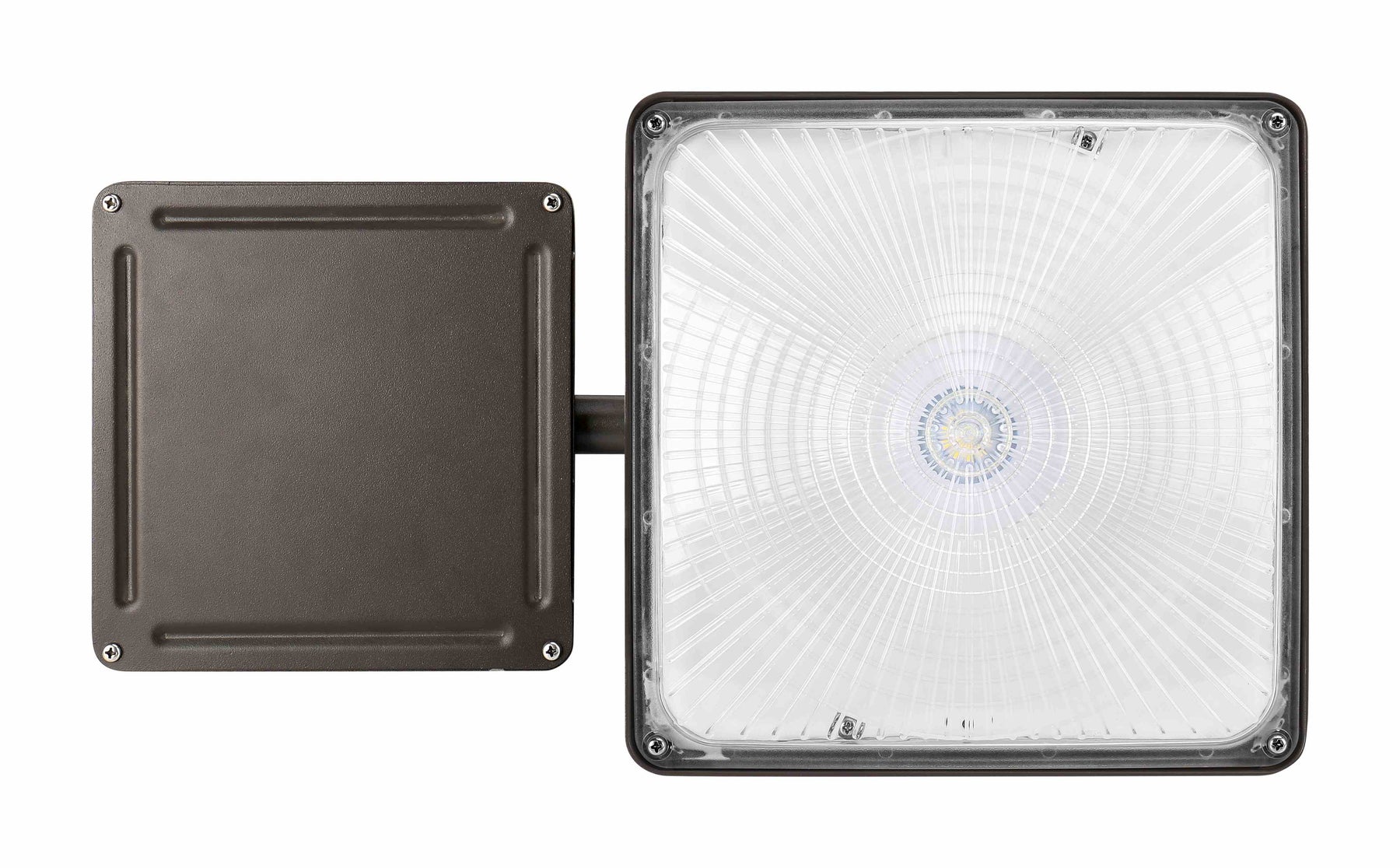

  • Optional Built-in Battery Backup
  • Replaces Up to 250W MH

ORDERING GUIDE

Model Series

Watt (W)

CCT (K) [xx]

Voltage (V)

Finish [y]

Sensor [a]

Remote Controller [b]

Emergency Driver [c]

LCNP LED Canopy

27 27W
40 40W
60 60W

40 4000K
50 5000K

U | 100-277V

H | 347-480V

D |
B |
W |
S |

Dark Bronze *
Black
White
Silver

Blank |
MS |

None *
PIR Motion Sensor

Blank |
RM |

None *
Remote Controller

Blank |
EM08 |

None **
EM Driver + 8W Battery

*  Standard option
** Integral Controls & Emergency Drivers

Choose Your Model Specifications Above:

LCNP

27

50

H

D

MS

Blank

EM08

Example Ordering Number:  LCNP27-50-HD-MS-EM08

KEY SPECIFICATIONS

  • Housing: Galvanized Anti-Rust Steel Frame
  • Input Voltage: 120 - 277Vac or 347-480Vac
  • Operating Temp: -40°F — 140°F
  • Efficacy: 130LM/W to 145LM/W
  • IP: UL Damp Location Listed
  • CRI: >70 or >80
  • THD: <15%

APPLICATIONS
TITAN_APP

CERTIFICATIONS
Certifications

STANDARD WARRANTY*
7YRS

* Extended warranty available

MODEL SPECIFICATIONS

Model

Watt

Lumens

Voltage

CCT

LPW

Replaces

LCNP27

27W

3,800LM

120-277V

347-480V

4000K

5000K

140LM/W

100W MH

LCNP40

40W

5,500LM

137LM/W

175W MH

LCNP60

60

8000LM

133LM/W

250W MH

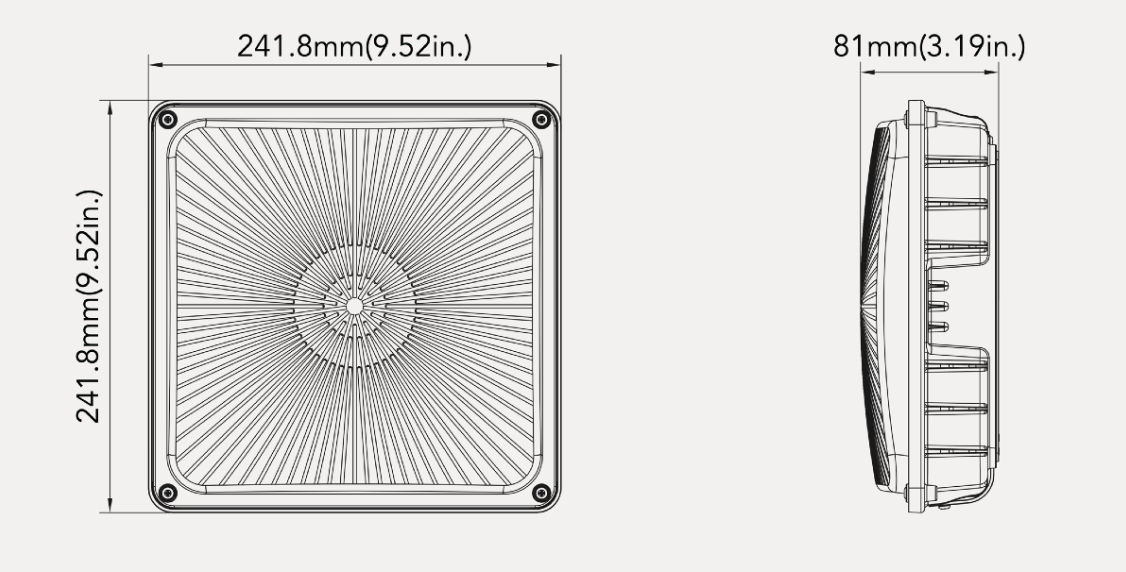

SIZING & MEASUREMENTS

Model Series

Depth (in)

Height (in)

Length (in)

Weight (lb)

LCNP27

3.19

9.52

9.52

3.62

LCNP40

3.19

9.52

9.52

4.17

LCNP60

3.19

9.52

9.52

5.07

LCNP_dim

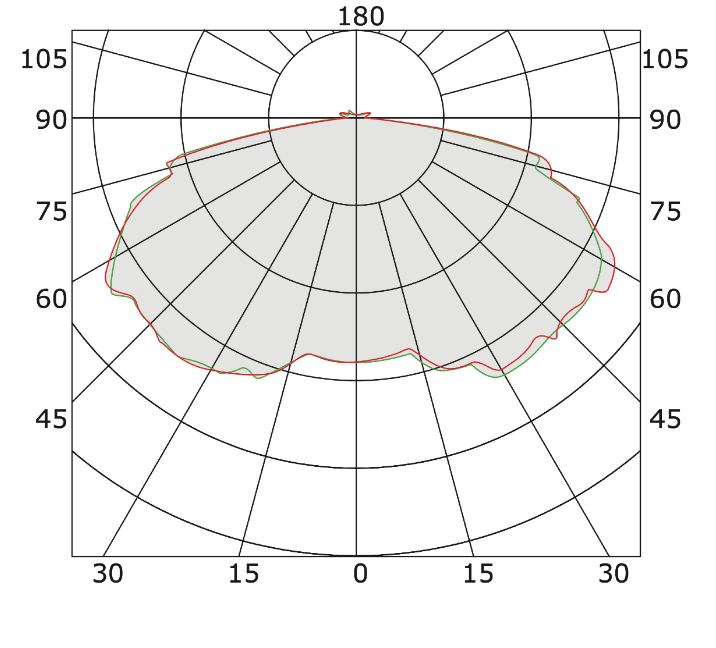

PHOTOMETRICS
LCNP-photometrics
